SAN vs NAS vs DAS Storage: What Architecture Firms Need

When opening complex Revit models freezes workstations across a Dallas design studio, installing an enterprise Storage Area Network (SAN) is rarely the cure. Autodesk Revit worksharing relies on rapid SMB file-level locking rather than raw block access, meaning an enterprise 10GbE Network-Attached Storage (NAS) appliance paired with local NVMe Direct-Attached Storage (DAS) caching consistently outperforms a multi-thousand-dollar SAN. Deploying high-speed NVMe DAS inside workstations for local cache alongside a resilient 10GbE NAS for central repository files eliminates sync latency and protects multi-gigabyte models from corruption.

Evaluating SAN, NAS, and DAS storage architectures requires looking past the spec sheets published by traditional IT hardware vendors. Generic IT blogs evaluate storage protocols for virtualized database servers. Those workloads process predictable read and write patterns. Architecture, Engineering, and Construction (AEC) design workloads do not. Revit central model collaboration places severe demands on file systems through burst concurrency, element ownership handoffs, and relentless transactional locking. Selecting the wrong storage architecture introduces workflow friction, costs thousands in unneeded network fabric, and creates active risks of project corruption during deadline pushes.

How Do Revit and BIM File Demands Break Standard Storage

Standard office files like spreadsheets and PDFs open by loading entirely into system RAM or writing simple temporary lock files. Autodesk Revit worksharing behaves like an active, multi-user database distributed across a local network. When multiple architectural designers work inside a local model (.rvt) and synchronize with the central file, the storage controller must process hundreds of simultaneous metadata requests. If the storage target cannot acknowledge these requests within milliseconds, the client workstation interface freezes, halting production across the studio.

Understanding this breakdown requires examining how specialized engineering stacks interact with the underlying network, a core focus of our managed IT for architecture firms.

File-Level Locking vs Raw Block Transfer

Revit worksharing relies strictly on Server Message Block (SMB) file-level locking mechanisms. When a designer edits a wall, modifies a family, or borrows an element workset, Revit issues SMB lock commands to the storage device hosting the central file. The storage operating system must arbitrate these locks instantaneously so two designers cannot write conflicting changes to the same model element at the same moment.

Raw block transfer protocols do not manage file locks. They simply read and write raw disk sectors. If storage lacks a native file system layer running SMB 3.x to govern concurrent access, client workstations cannot coordinate element borrowing. Attempting to place an unmanaged central model on a shared raw block volume without a cluster-aware file system immediately corrupts the central model database.

Why Multi-User Sync Latency Trumps Raw Network Bandwidth

Bandwidth is not responsiveness. A studio can run a 10-gigabit pipe to every desk, but if packet round-trip time and storage controller queue depth spike, synchronization speeds drop. During a Revit "Sync with Central" operation, the workstation conducts a multi-phase exchange: reading central data, writing local delta changes, updating the central project database, and releasing element locks.

This process is heavily serialized. The speed of the sync is governed by the storage controller CPU capability to manage rapid-fire metadata writes and SMB opportunistic locking (oplocks). An entry-level storage processor that stalls while negotiating lock releases leaves designers staring at an unresponsive save bar, regardless of how many gigabits of theoretical network throughput remain unused.

SAN vs NAS vs DAS Storage at a Glance

Selecting storage for an architecture or engineering studio requires matching the storage architecture to the actual workflow requirement. Storage architectures differ fundamentally in how they handle concurrent multi-user access.

Storage Architecture	Primary Protocols	Physical Interconnect	Typical Entry Cost	Multi-User Revit Suitability
DAS (Direct-Attached Storage)	NVMe, PCIe 4.0/5.0, SATA	Internal M.2, PCIe slot, SAS cable	$150 to $600 per drive	Mandatory for local workstation cache; unusable as a multi-user central repository.
NAS (Network-Attached Storage)	SMB 3.1.1, NFS, CIFS	10GbE / 25GbE Cat6A, SFP+ Fiber	$2,495 to $15,000 appliance	Optimal for studio central models; natively manages SMB file locking and snapshots.
SAN (Storage Area Network)	Fibre Channel (FCP), iSCSI, NVMe-oF	Dedicated optical fabric, Host Bus Adapters	$15,000 to $80,000+ setup	Poor direct fit for workstations; delivers raw blocks requiring intermediary servers.

According to technical storage documentation from KodeKloud, DAS provides dedicated block storage directly to a single host, while NAS delivers shared file systems over Ethernet, and SAN exposes pooled block storage across high-speed fabrics. Purpose-built NAS appliances typically start around $2,495, as outlined in hardware cost analyses by StoneFly, whereas enterprise SAN controllers scale up to 1.5 petabytes per node for high-density transactional clusters. For desktop BIM collaboration, throwing raw SAN hardware at desktop workstations misses the architectural problem.

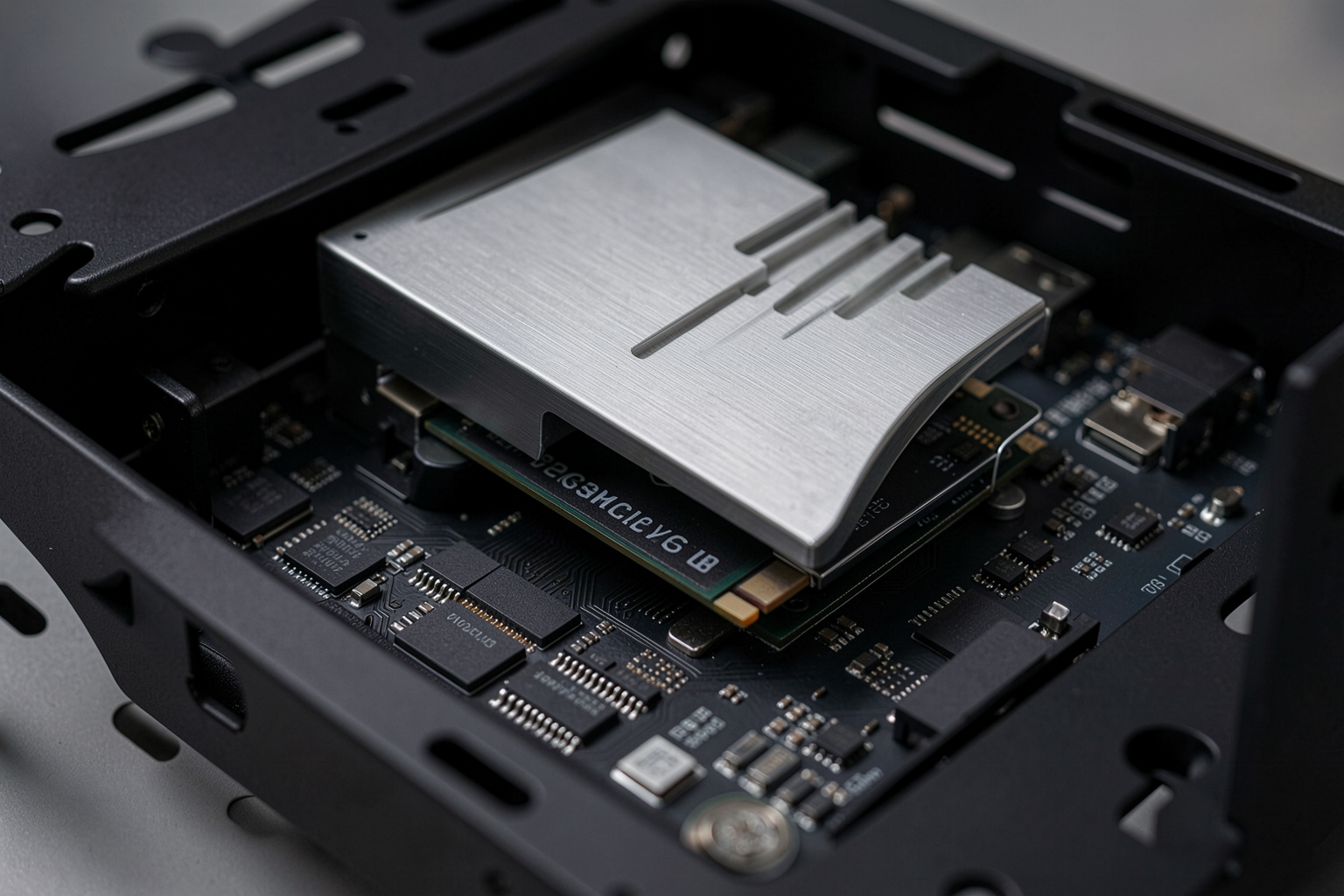

Should Your Studio Rely on Direct-Attached Storage for Active Projects

Direct-Attached Storage (DAS) refers to digital storage drives connected directly inside or immediately adjacent to a single computer, operating over internal buses without crossing an external network switch.

The Role of Workstation NVMe Drives for Viewport Rendering

Direct-Attached Storage belongs inside every CAD and BIM workstation. Modern production environments require enterprise-grade PCIe 4.0 or PCIe 5.0 NVMe Solid State Drives installed directly on the motherboard. As highlighted in a May 2026 performance analysis by TechTarget, PCIe 5.0 and NVMe architectures achieve the lowest possible read and write latencies by communicating straight to the host CPU.

When a designer navigates a detailed 3D viewport in Revit, runs Enscape real-time walk-throughs, or renders scenes in Lumion, the software constantly pulls textures and swap data from disk. High-speed local NVMe DAS provides read throughput exceeding 7,000 MB/s with sub-millisecond seek times. This local throughput prevents micro-stutters during 3D navigation and slashes model load times from local storage.

Why DAS Cannot Support Multi-User Central Model Syncing

DAS cannot arbitrate multi-user worksharing. Modern technical evaluations from Pre Rack IT confirm that DAS lacks native multi-host network sharing capabilities. A DAS volume belongs to the host machine operating system. If an architecture firm attempts to host a central Revit model on one architect's workstation and shares that drive across Windows File Sharing, the host machine becomes a bottleneck. The workstation CPU must juggle heavy rendering tasks while simultaneously arbitrating SMB network interrupts from colleagues, leading to model lockups and project desynchronization.

Is Network-Attached Storage the Right Fit for Multi-User Central Models

Network-Attached Storage (NAS) operates as an independent, purpose-built appliance connected directly to the studio Local Area Network (LAN). It contains a dedicated storage controller configured to share directories over standard network protocols.

Operating a stable NAS for high-demand production files requires moving away from reactive IT ticket queues. You need disciplined, security-controlled IT operations that actively enforce network integrity and validate storage stability before deadlines collapse.

How 10GbE NAS Streamlines Central Model Worksharing

For on-premises collaboration, an enterprise-grade NAS deployed across an isolated 10-gigabit Ethernet (10GbE) network is the standard architecture for Revit worksharing. High-tier NAS appliances running multi-core processors and ECC RAM handle SMB file transactions with minimal latency. They manage the rapid lock-and-release cycles required when multiple staff members sync changes simultaneously.

An enterprise NAS operating SMB 3.1.1 supports fast multichannel connections and dedicated NVMe caching. Designers open their local model copy from local NVMe DAS, while the 10GbE NAS hosts the central model and synchronizes delta updates without locking colleagues out of the project.

Why Consumer NAS Appliances Trigger Central File Corruption

Buying a desktop consumer NAS unit from a big-box retailer introduces significant operational risk to an architecture studio. Consumer units rely on underpowered low-voltage processors and small memory pools designed for streaming home media or running simple file backups.

When four designers simultaneously push 500MB synchronization updates to a consumer NAS during a critical project deadline, the controller write buffers overflow. The weak storage controller drops transient SMB file locks under write contention. When a lock drops mid-sync, Revit cannot reconcile the database transactions. The result is an orphaned workset, an unusable central model, or a corrupted database that forces the studio to revert to older backups, vaporizing hours of billable work.

When Does a Storage Area Network Justify the Capital Expense

A Storage Area Network (SAN) is a specialized, dedicated high-speed network that interconnects and presents shared pools of block-level storage devices to multiple servers. Unlike NAS, which presents formatted folders via file protocols, a SAN presents raw Logical Unit Numbers (LUNs) that a server formats as an internal local drive.

Real-World Storage Area Network Examples

Common storage area network examples in enterprise IT demonstrate why this architecture was engineered for datacenters rather than desktop design groups:

• Virtualization Hypervisor Clusters: High-density VMware ESXi or Microsoft Hyper-V clusters running dozens of virtual servers utilize a SAN over Fibre Channel. Virtual machines fail over between physical hosts without moving underlying data blocks.
• Transactional Database Engines: Enterprise SQL or Oracle database clusters rely on low-latency SAN LUNs to process thousands of simultaneous banking records every second.
• Private Cloud Datacenters: Regional facilities deploy enterprise SANs to dynamically reallocate petabytes of block storage across heterogeneous server blades.

The Block Storage Barrier for Client Workstations

A SAN delivers raw block storage. It does not manage a shared multi-client file system out of the box. As detailed by storage analysts at Everpure Data, modern SANs provide high IOPS for enterprise hypervisors, but client operating systems cannot natively mount the same raw block LUN simultaneously without disk corruption, unless an enterprise clustered file system arbitrates access.

Connecting thirty Windows design workstations directly to a SAN requires specialized Fibre Channel Host Bus Adapters (HBAs), expensive optical switches, and complex SAN file system software licensing. In practice, firms that buy a SAN end up placing a Windows Server in front of it to share files over SMB anyway. At that point, the SAN simply acts as an expensive back-end drive array for a file server, introducing extreme capital cost without reducing Revit desktop sync latency.

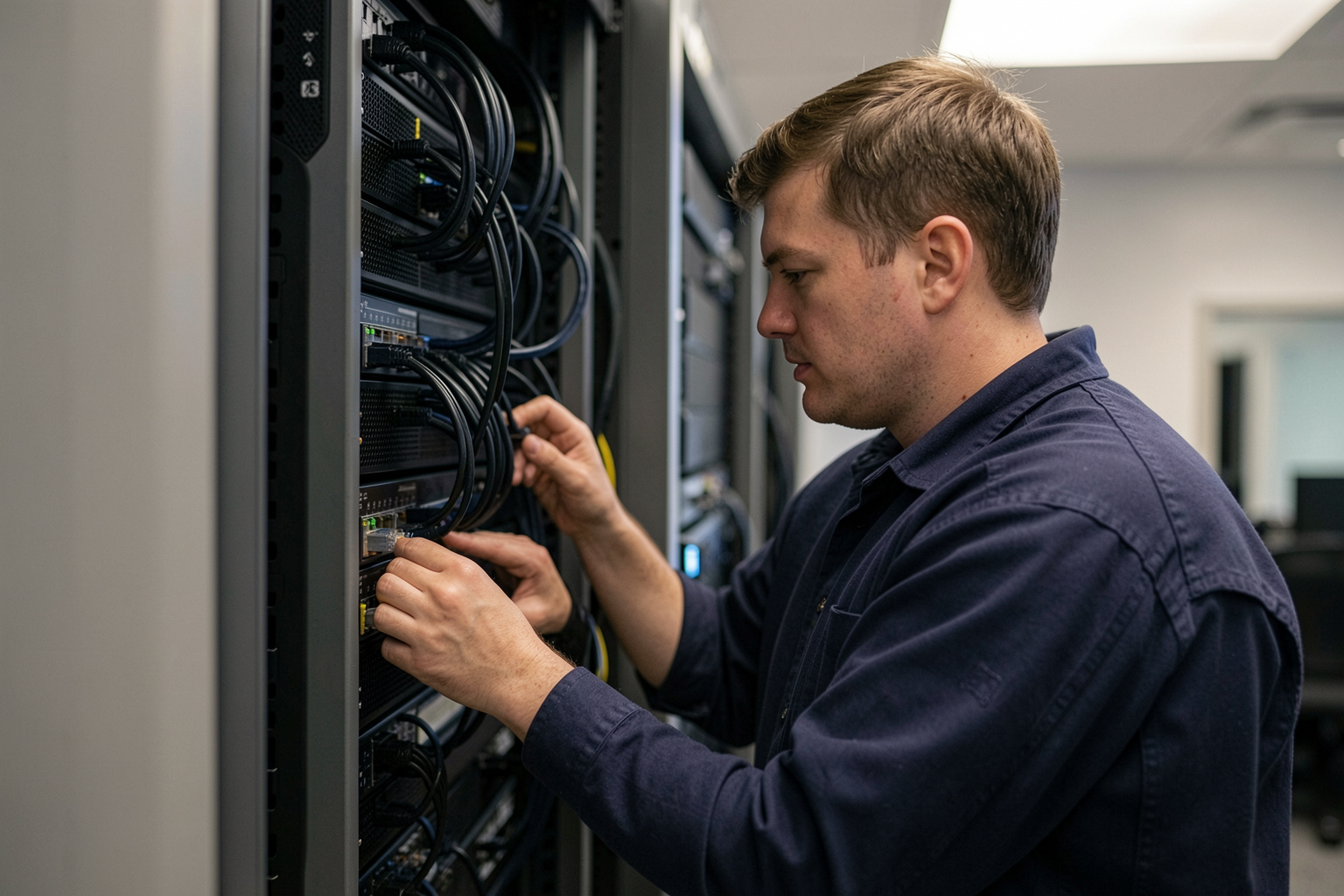

How Do You Protect Multi-User BIM Central Models from Corruption

Preventing model corruption requires more than fast hardware; it demands enforced technical baselines across your network and storage parameters. Use this engineering checklist to protect your production environment:

Audit Managed Switch Backplanes and VLAN Packet Drops

1. Verify Non-Blocking Backplane Capacity: Ensure your core 10GbE network switch features a non-blocking switching fabric capable of handling full-duplex traffic across all studio ports simultaneously.
2. Isolate BIM Traffic on a Dedicated VLAN: Separate CAD and Revit workstation traffic from general office IoT devices, guest Wi-Fi, and surveillance cameras to prevent broadcast storm packet drops.
3. Disable SMB Deep Packet Inspection on Internal Switch Ports: Ensure security gateways do not introduce latency by inspecting internal SMB packet headers passing between workstations and the storage appliance.
4. Audit Network Flow Control and MTU Settings: Standardize Ethernet frame sizes across workstations and NAS interfaces, avoiding mismatched Jumbo Frames that cause packet fragmentation and dropped locks.

Configure Immutable Snapshots for Instant Central Model Rollback

1. Schedule Hourly Storage Snapshots: Configure point-in-time snapshot policies on your central NAS to execute every 60 minutes during active studio working hours.
2. Enforce Snapshot Immutability: Implement write-once-read-many (WORM) snapshot retention to prevent automated ransomware strains from encrypting historical recovery blocks.
3. Test Instant Mount Recovery: Maintain runbooks to present an uncorrupted snapshot share within five minutes of an accidental model corruption event, eliminating lengthy restore cycles from tape or secondary media.

Backups are not disaster recovery if they cannot restore an intact project database immediately. Storage hosting BIM central repositories must maintain automated, immutable snapshots so an accidental workset corruption can be rolled back to a clean state in minutes rather than restoring from an overnight backup.

The Recommended Hybrid Setup for Dallas-Fort Worth Architecture Studios

Dallas-Fort Worth is home to a booming commercial construction market, driving heavy multi-gigabyte BIM project workloads across regional design studios. The region is also an enterprise infrastructure powerhouse; public infrastructure records at datacenter.fyi track 46 operational data centers supported by the ERCOT and Trinity Valley Electric Cooperative utility grids, alongside Tier 3 colocation hubs near downtown Dallas like those documented by GoDataCenters.

DFW design firms do not need datacenter-scale SANs inside their offices to achieve enterprise speed. The ideal regional infrastructure blueprint combines local speed with high-resiliency storage through a three-tier hybrid configuration:

1. Tier 1: High-Speed Local Workstation Caching (DAS)
   Equip every designer workstation with an internal 2TB or 4TB PCIe 4.0/5.0 NVMe M.2 SSD. Dedicate this local drive to Windows 11 Pro, Revit software installations, Autodesk Collaboration cache directories, and local project work files. This isolates view generation, rendering scratches, and viewport pan/zoom activity to sub-millisecond bus speeds.
2. Tier 2: On-Premises Central Repository and Collaboration (10GbE NAS)
   Deploy an enterprise-grade rackmount NAS appliance equipped with an enterprise multi-core processor, a minimum of 64GB ECC RAM, and enterprise SAS or NVMe drives configured in a resilient RAID 6 or RAID 10 array. Connect the NAS through dual 10GbE SFP+ uplinks into a managed network switch. This unit hosts the active central models, managing SMB 3.x file locking, local file shares, and local hourly snapshots.
3. Tier 3: Immutable Off-Site Replication and Disaster Recovery
   Replicate hourly NAS snapshots automatically to a secure, off-site repository or regional cloud facility outside the primary building risk zone. This protects proprietary architectural intellectual property against local physical disruptions, power events, or ransomware infections without degrading day-to-day office LAN performance.

If your studio is spending billable hours waiting on spinning sync bars or fighting corrupted worksets, the solution is not an expensive SAN. It is an infrastructure stack engineered specifically for how modern BIM software moves data. Schedule a security discussion with our engineering team to review your studio storage environment and eliminate collaboration bottlenecks.

Frequently Asked Questions

Can CAD and Revit workstations connect directly to a Storage Area Network (SAN)?

No. SAN storage delivers raw block-level volumes over Fibre Channel or iSCSI meant for dedicated servers, not client desktop computers. Standard client operating systems like Windows 11 cannot natively share the same block volume across multiple workstations simultaneously without an underlying clustered file system, making direct SAN connections impractical for design teams.

Why does Autodesk Revit take so long to sync with central on a standard office NAS?

Revit synchronization speed depends heavily on storage controller CPU performance and SMB file-locking latency rather than raw network bandwidth. When multiple designers synchronize simultaneously, an underpowered office NAS cannot arbitrate the burst of metadata updates and file locks quickly enough, causing workstation interfaces to stall while queuing for disk access.

What are common storage area network examples in commercial IT?

Standard storage area network examples include high-density enterprise virtualization fabrics like VMware ESXi or Microsoft Hyper-V clusters, massive transactional database arrays running Microsoft SQL or Oracle, and enterprise private cloud infrastructures. These deployments require shared block-level Logical Unit Numbers (LUNs) across server racks rather than client-facing desktop file directories.

Why shouldn't architecture firms use consumer-grade NAS appliances for central project files?

Consumer NAS appliances lack the processing horsepower, memory capacity, and write-buffer protection required to sustain high-concurrency SMB workloads. Under heavy write contention during deadline sync periods, consumer controllers drop opportunistic file locks, creating collision states that directly corrupt the central Revit project database.

How does local NVMe Direct-Attached Storage (DAS) improve 3D modeling speed?

Internal PCIe NVMe drives communicate directly with the workstation motherboard, delivering sustained transfer speeds above 7,000 MB/s and sub-millisecond access times. This local responsiveness prevents viewport rendering lag, accelerates local cache processing, and speeds up application launch times, ensuring intensive design work does not saturate the studio network.
